Scope ofApplication
Resistance testing of hardware casings for various mobile phones, tablets,and laptops.
Advantage
1. Automatic testing, with a production capacity of up to 1200pcs/H;
2. With an accuracy of up to 0.01 ohm, it supports multi-channel testing at upto 128 points;
3. Automatically collect and test defective products, NG belt pull canstore 8 defective products.

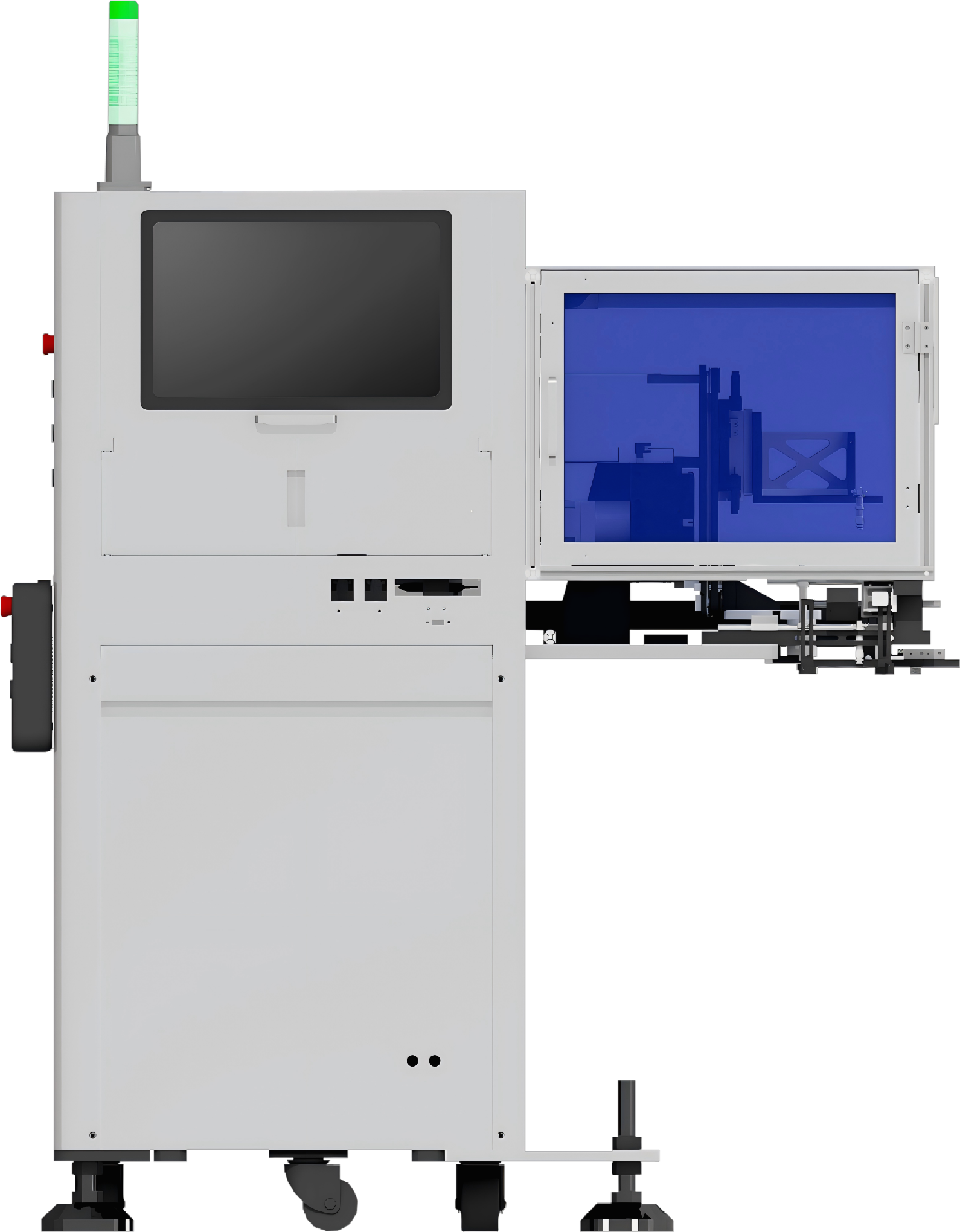

| Equipment | Resistance Tester (Line-side Mobile Version) | Resistance Tester (Line-side Flat Panel Model) | Resistance Tester (Straight Handle Type) |
| Model | YH231 | YH246 | YH242 |
| OverallDimension（L*W*H) | 800mm*640mm*1400mm | 1150mm*900mm*1400mm | 1200mm*900mm*1500mm |
| EquipmentWeight | 350KG | 500KG | 530KG |
| RatedPower | 1KW | 1KW | 1KW |
| TestRange | 0-2.5 Mohm (customizable up to 100 Mohm) | 0-2.5 Mohm (customizable up to 100 Mohm) | 0-2.5 Mohm (customizable up to 100 Mohm) |
| TestMethod | Two-wire test, four-wire test | Two-wire test, four-wire test | Two-wire test, four-wire test |
| TestPoints | 1-128点 | 1-128点 | 1-128点 |
| TestPrecision | 0.01ohm | 0.01ohm | 0.01ohm |
| TestPassRate | ≥99% | ≥99% | ≥99% |
| EquipmentCapacity | 1000-1200pcs/H | 1000-1200pcs/H | ≥800pcs/H |
|
