Sheet Stock Laminating Equipment_Automation_Shenzhen yuehe precision technology co. LTD

Scope of Application

Process for attaching auxiliary materials on variousmobilephonehardware cases, plastic cases.

Advantage

1.Capable of locating and retrieving accessories;

2.Automatically deviation products and accessories with visualrecognition system;

3.Preventing missing/duplication of attaching accessories;

4.Feeding belt suits with any arrangement method;

5.The sheet material can be bonded into a roll using a silent adhesivetape, which is convenient and practical;

6.The sheet material silicone pad can be adhered.

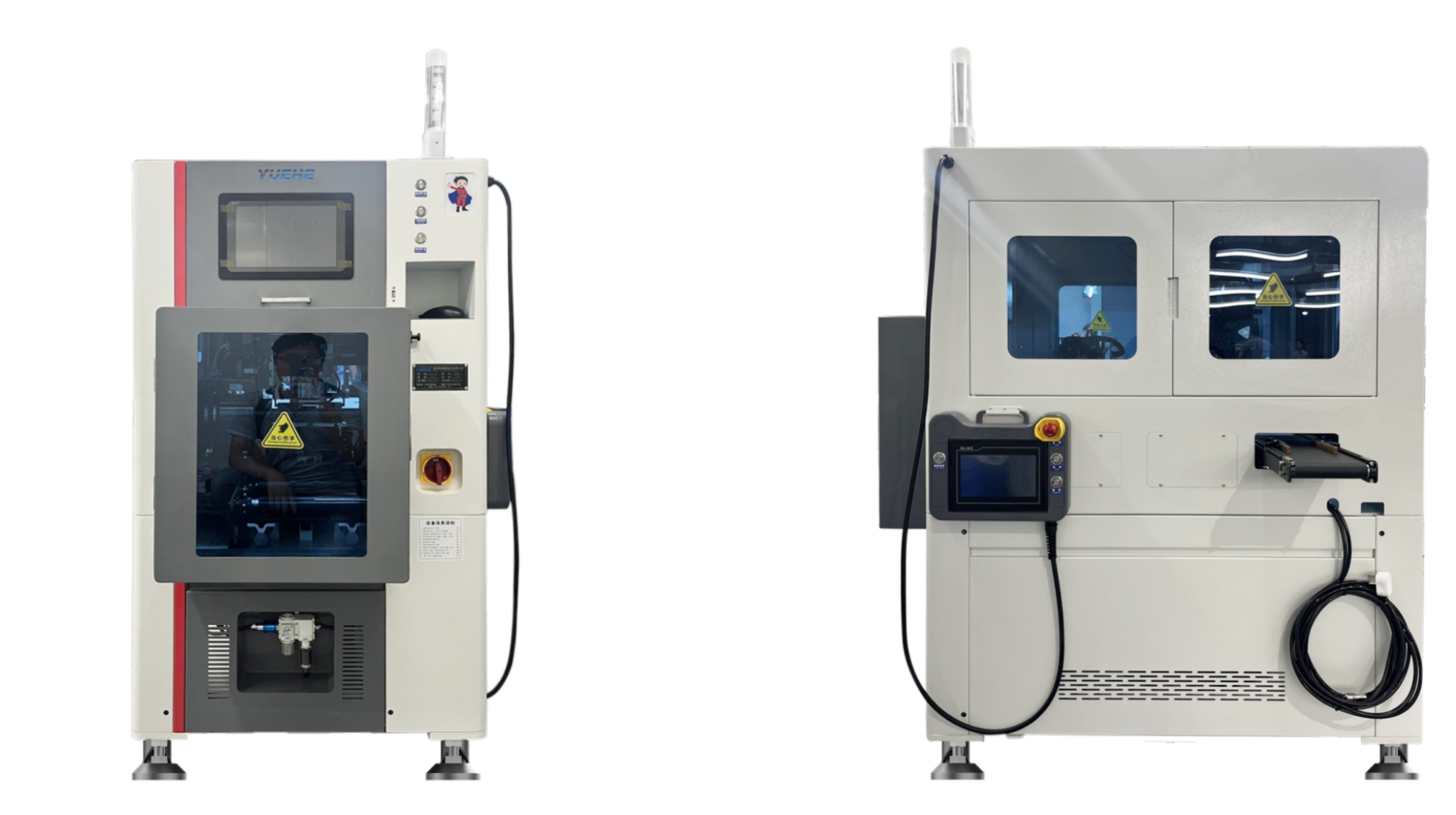

Equipment	Straight Pull Film Material Laminating Machine	Edge Material Laminating Machine
Model	YH010	YH025
OverallDimension（LWH)	780mm1080mm1400mm	780mm1080mm1400mm
Weight	600KG	550KG
Accuracy	±0.05mm	±0.05mm
AuxiliaryMaterials	Roll material	Roll material
RatedPower	1.5KW	1.5KW
AirPressureRequirement	0.5-0.8MPa	0.5-0.8MPa
SingleYield	≥99.5%	≥99.5%
Capacity	For each piece < 10 auxiliary materials, the production capacity is 500 Pcs/H For each piece >= 10 auxiliary materials, the production capacity is 1000 Pcs/H	For each piece < 10 auxiliary materials, the production capacity is 500 Pcs/H For each piece >= 10 auxiliary materials, the production capacity is 1000 Pcs/H
Cost-recoveryCycle	6 months (calculated based on 80% utilization rate)	6 months (calculated based on 80% utilization rate)
