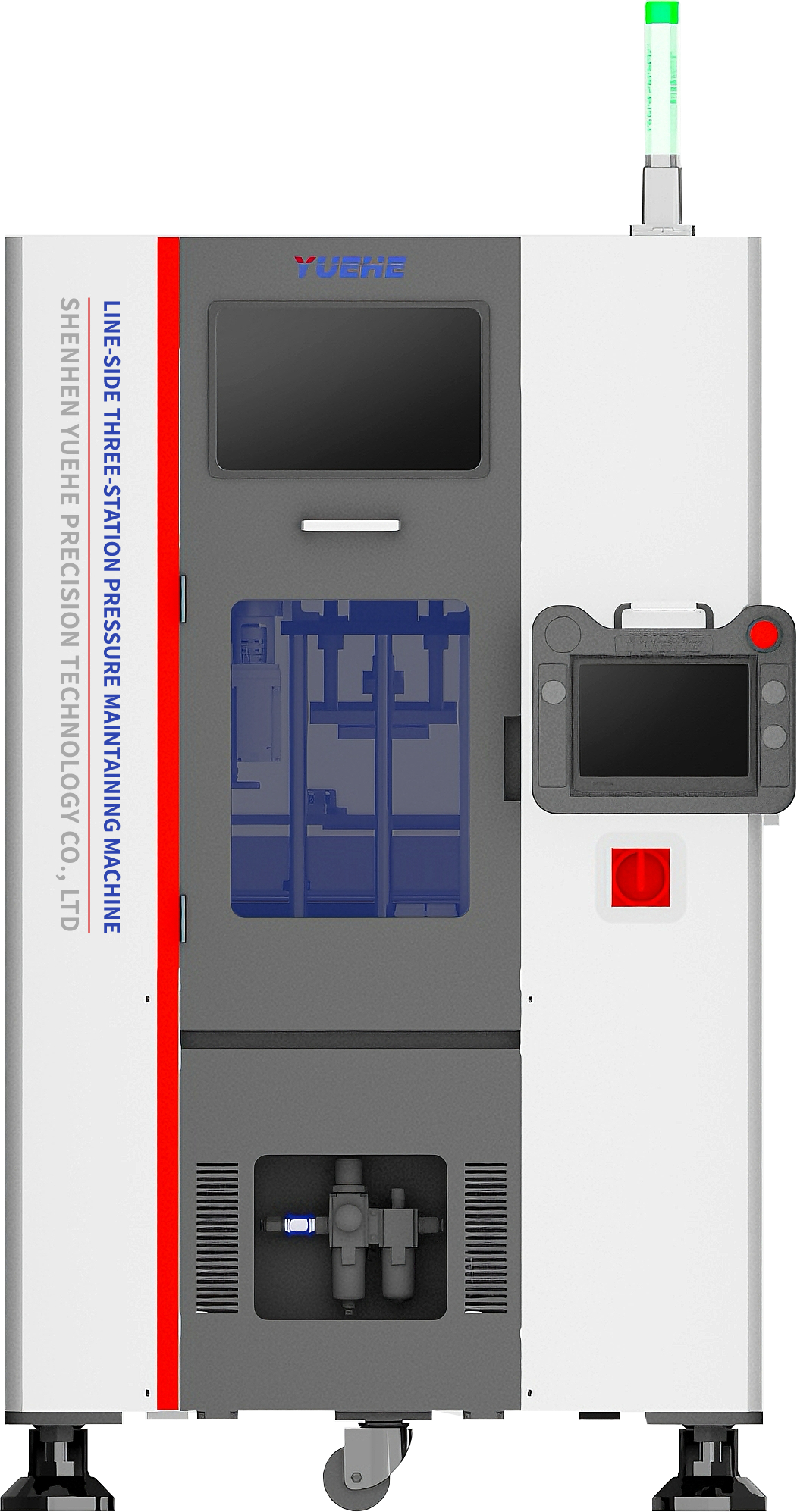

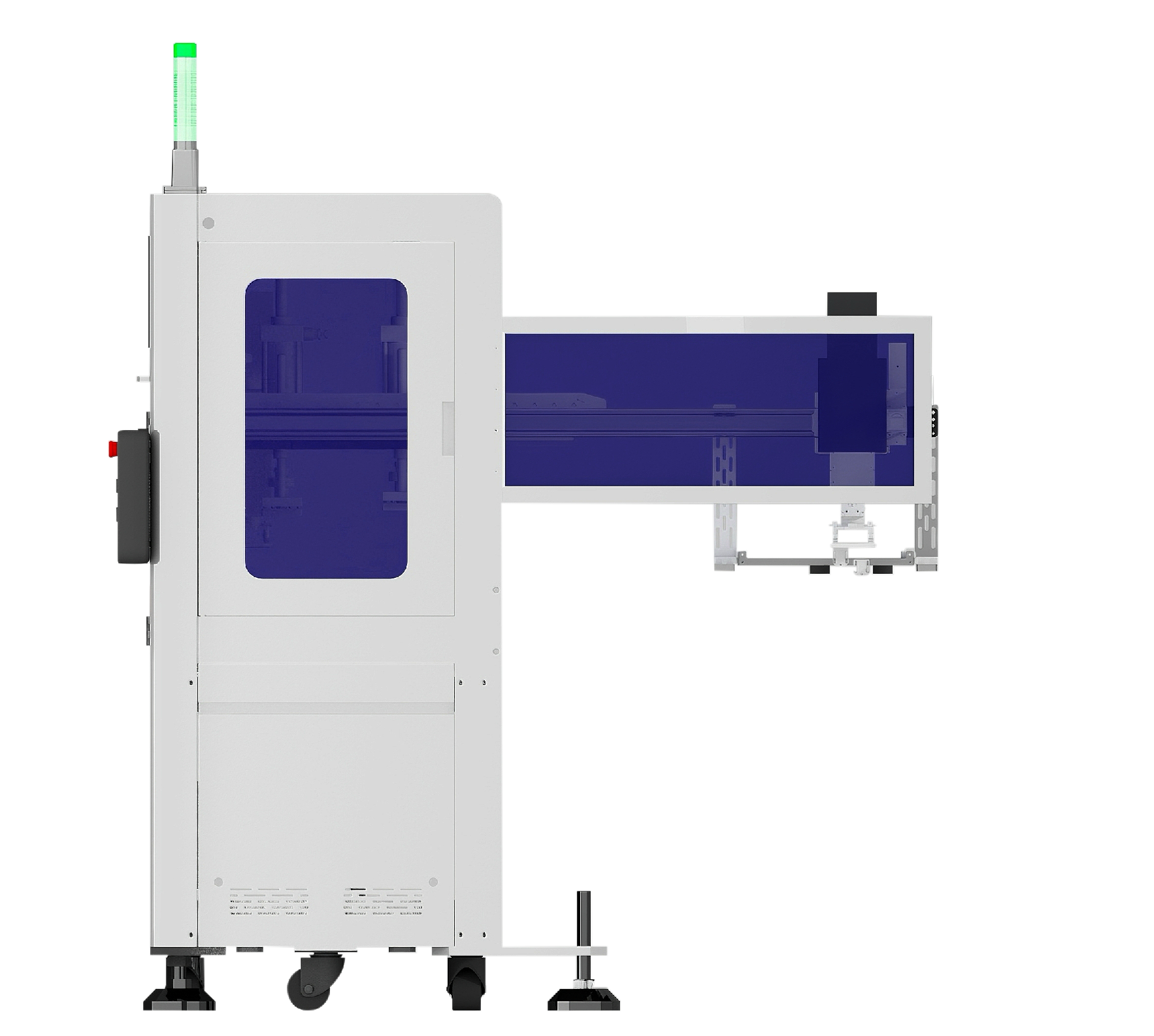

Line-side Three-station Pressure Maintaining Equipment_Automation_Shenzhen yuehe precision technology co. LTD

Scope ofApplication

Process for attaching auxiliary materials on mobile phone hardware shell,plasticshellsheet material

Advantage

1.It can simultaneously apply pressure to two phone cases, thereby improvingefficiency;

2.Strong versatility,it can be combined with large-diameter cables to achievemanualflexible production;

3. Support the working direction of the conveyor belt assembly line for bothpositive and negative incoming materials;

4.Customers can customize functions such as scanning, pressure sensors andMES upload according to their needs.

Equipment	Two-station edge-of-line pressing machine (mobile version)	Dual-Station Edge Press Machine (Flat Plate Version)	Dual-Station Edge Press Machine (Laptop Model)
Model	YH020	YH019	YH012
OverallDimension（LWH)	830mm600mm1400mm	1100mm700mm1400mm	1350mm800mm1400mm
Weight	350KG	450KG	550KG
Available Product Size(L*W)	180mm*85mm	300mm*200mm	400mm*260mm
Time	2±1s	2±1s	2±1s
RatedVoltage	AC 220V,50Hz	AC 220V,50Hz	AC 220V,50Hz
RatedPower	0.8KW (without heating) 1.8KW (with heating, heating function optional）	0.8KW (without heating) 1.8KW (with heating, heating function optional）	0.8KW (without heating) 1.8KW (with heating, heating function optional）
AirPressureRequirement	0.5-0.8MPa	0.5-0.8MPa	0.5-0.8MPa
Capacity	1200Pcs/H	1000Pcs/H	800Pcs/H
Cost-recoveryCycle	6 months (calculated based on 80% utilization rate)	6 months (calculated based on 80% utilization rate)	6 months (calculated based on 80% utilization rate)
