Scope of Application

Process for attaching TP big back adhensive on various tablet computers.

Advantage

1.High fitting accuracy: the accuracy of the comprehensive auxiliary materialsis within +0.1mm;

2.Preventing missing/duplication of attaching accessories by taking photos;

3.The adhesive structure adopts double suction heads, which can eliminatethe deformation of the adhesive during the process of separation;

4.The materials are precisely selected, and both the auxiliary material feedingplate and the transfer plate have cameras for photo-based positioning ofmaterial selection;

5.The product transportation is carried out by using a belt and manual handling.The belt enables convenient loading and unloading of products, and thehandling process can accommodate products with raised back cameras.

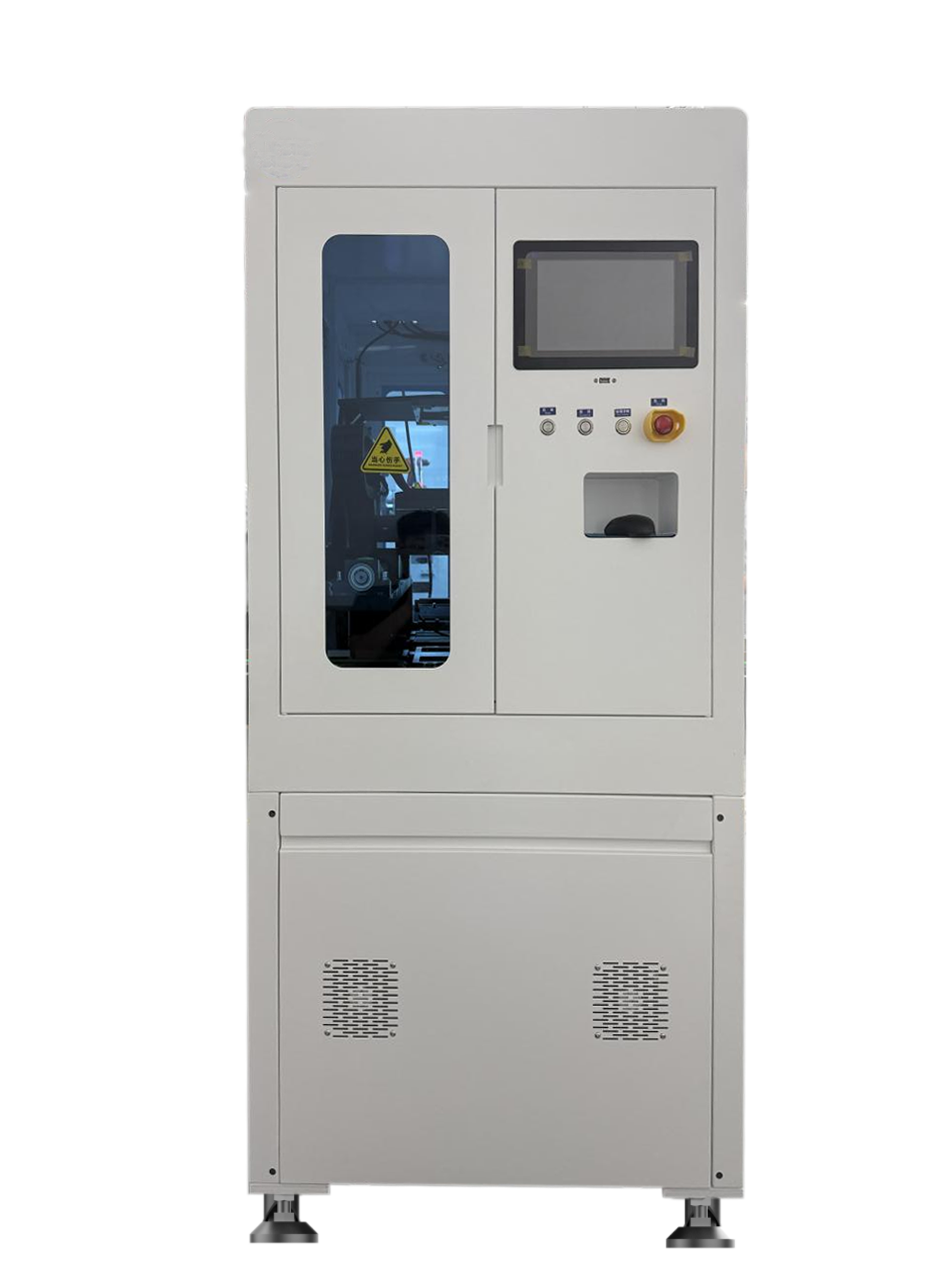

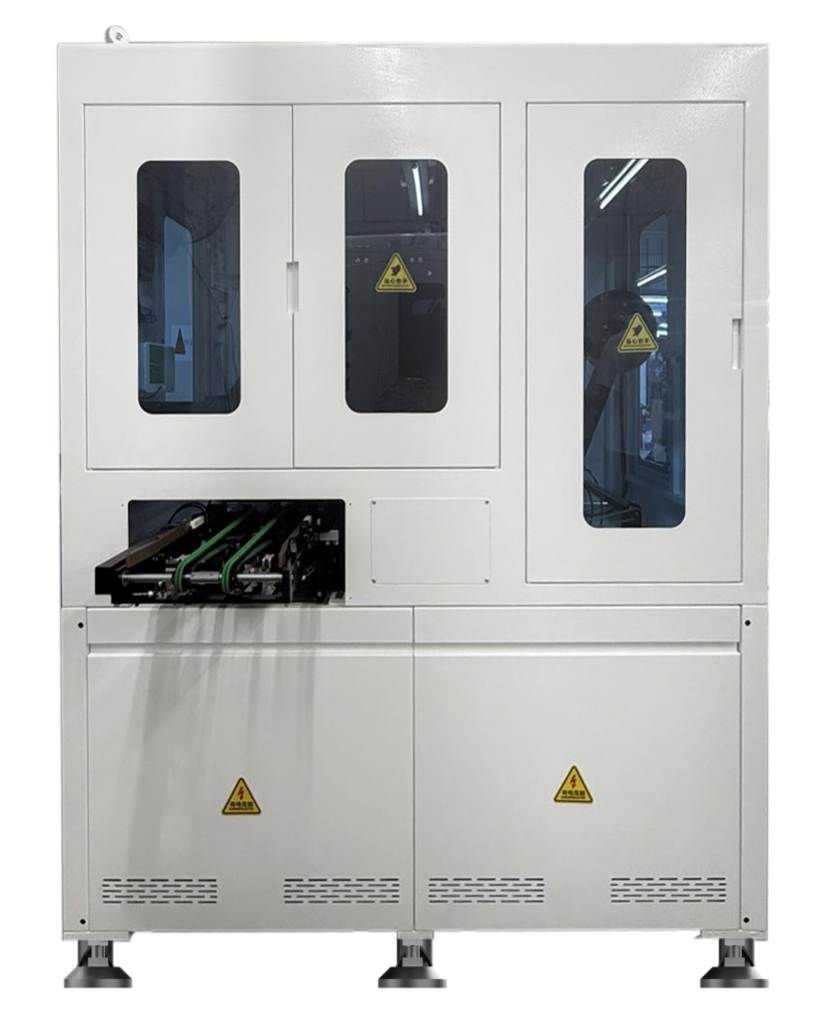

Equipment	Straight Pull Sticker Auxiliary Machine (TP Adhesive Version)	Edge Line Accessories Attachment Machine (TP Adhesive Version)
Model	YH006	YH024
OverallDimension（LWH)	880mm1200mm1400mm	880mm1200mm1400mm
Weight	650KG	700KG
AvailableProductSize（L*W)	300mm*200mm	300mm*200mm
Accuracy	±0.1mm	±0.1mm
Auxiliarymaterials	Roll material	Roll material
IndustrialCamera	Product: 20 million pixels Accessories: 20 million pixels	Product: 20 million pixels Accessories: 20 million pixels
RatedVoltage	AC220V,50Hz	AC220V,50Hz
RatedPower	1.8KW	2KW
AirPressureRequirement	0.5~0.8MPa	0.5~0.8MPa
SingleYield	≥99%	≥99%
Capacity	800Pcs/H	800Pcs/H
Cost-recoveryCycle	6 months (calculated based on 80% utilization rate)	6 months (calculated based on 80% utilization rate)
